称重传感器防雷箱LCP-01

称重传感器防雷箱LCP-01 1、Six wires and shield protection works with four or six wire systems6线和屏蔽保护搭配,使用在4线或6线系统 2、Suitable for compression or tension cells适用于压力或张紧传感器 3、Low series impedance, loadcells do not need recalibration低阻抗,无需重新校准传感器 4、NEMA®-12 (IP-55) rated, suitable for outdoor use防尘防水,户外使用 5、Helps protect against excitation over-voltage and prevent loadcell damage 有助于防止励磁过电压,避免称重传感器损坏

咨询热线:0371-63760001

立即咨询其他咨询

详细信息

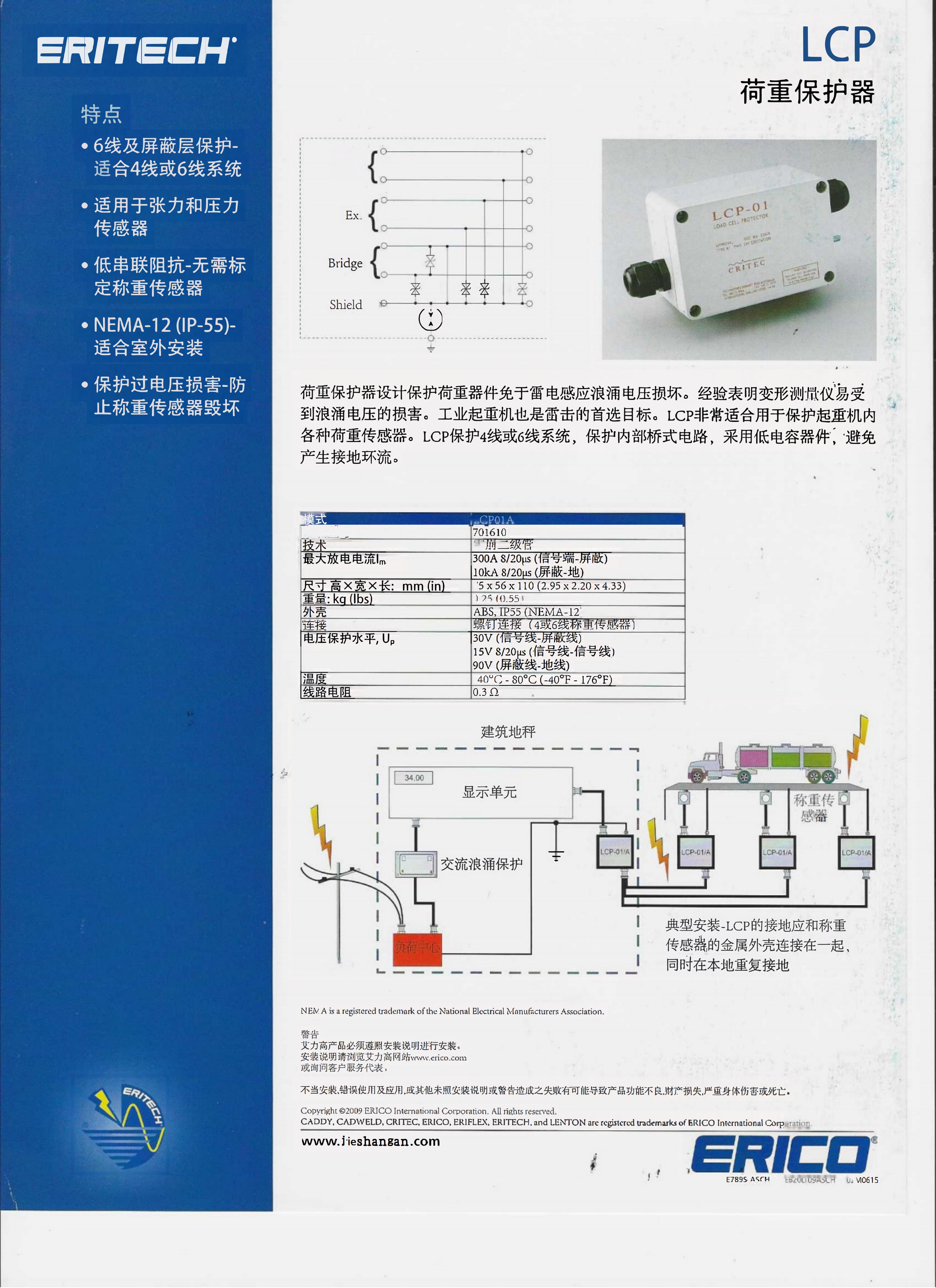

 称重传感器防雷箱LCP-01
特点:
1、Six wires and shield protection works with four or six wire systems
     6线和屏蔽保护搭配,使用在4线或6线系统

2、Suitable for compression or tension cells
     适用于压力或张紧传感器

3、Low series impedance, loadcells do not need recalibration
   低阻抗,无需重新校准传感器

4、NEMA®-12 (IP-55) rated, suitable for outdoor use
    防尘防水,户外使用
5、Helps protect against excitation over-voltage and prevent loadcell damage

   有助于防止励磁过电压,避免称重传感器损坏


PRODUCT ATTRIBUTES:

Max Discharge Current (Imax), Shield to Ground:10KA(8/20us)

Max Discharge Current (Imax), Signal to Shield :  0.3KA(8/20us)

Voltage Protection Level (Up), Shield to Ground : 90V

Voltage Protection Level (Up), Signal to Shield : 30V

Voltage Protection Level (Up), Signal to Signal :15V

Loop Resistance :0.3Ω

Technology :Silicon Avalanche Diode (SAD)

Enclosure Rating :NEMA® 12 (IP55)
